Written by: Segun Akomolafe
Over the past two decades, Wi-Fi 5 & 6 technology has evolved dramatically to meet our ever-increasing connectivity demands. From streaming HD content to supporting dozens of smart home devices, our wireless networks are handling more data now with WiFi 5 & 6 than ever before.
Wi-Fi 5 (802.11ac), introduced in 2014, provided significant improvements over its predecessors with gigabit speeds and enhanced 5GHz performance. Now, Wi-Fi 6 (802.11ax) represents the next generation with substantial upgrades designed to address modern networking challenges.
As remote work, 4K streaming, cloud gaming, and IoT devices become commonplace in your home and office, the need for faster, more reliable wireless networks has never been more critical. Your current Wi-Fi 5 router might be struggling to keep up with these demands.

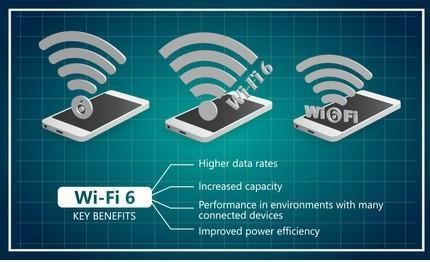

Wi-Fi 6 represents a significant upgrade over Wi-Fi 5 in multiple areas, including speed, capacity, efficiency, and security. But what exactly are these differences between WiFi 5 & 6, and do they matter for your specific needs? Let’s dive in.
Technical Specifications and Comparison
When comparing Wi-Fi 5 & 6, the following technical specifications reveal substantial advancements across the board:
Maximum Theoretical Speeds
Wi-Fi 5 tops out at approximately 3.5 Gbps under ideal conditions, while Wi-Fi 6 nearly triples this with theoretical maximum speeds up to 9.6 Gbps. This dramatic increase isn’t just about downloading files faster—it provides headroom for multiple high-bandwidth activities simultaneously.
Frequency Bands
Wi-Fi 5 operates exclusively on the 5GHz frequency band, which offers faster speeds but shorter range. Wi-Fi 6, however, works on both 2.4GHz and 5GHz bands, giving you better range flexibility while bringing significant performance improvements to the previously neglected 2.4GHz spectrum.
Channel Width Capabilities
While both standards support wider channel widths for increased throughput, Wi-Fi 5 typically operates on 80MHz channels with optional 160MHz support in some premium devices. Wi-Fi 6 standardizes 160MHz channels across the board, effectively doubling the data pipeline in many real-world scenarios.
MU-MIMO Capabilities
Multi-User Multiple-Input Multiple-Output (MU-MIMO) technology in Wi-Fi 5 only works for downlink connections (router to device). Wi-Fi 6 extends this to uplink connections as well, allowing multiple devices to simultaneously upload data to your router efficiently—critical for video conferencing and cloud backups.
Modulation Schemes
Wi-Fi 5 utilizes 256-QAM (Quadrature Amplitude Modulation), while Wi-Fi 6 implements the more advanced 1024-QAM. This improvement alone delivers a 25% increase in data throughput by packing more information into the same radio signal.
Read more: 5G Network: Everything You Need to Know
Key Performance Improvements in Wi-Fi 6
Wi-Fi 6 doesn’t just improve raw speed—it introduces several technologies that fundamentally change how your wireless network operates.
Orthogonal Frequency Division Multiple Access (OFDMA)
Perhaps the most significant advancement in Wi-Fi 6 is OFDMA technology. Unlike Wi-Fi 5, which can only serve one device per channel at a time, OFDMA divides each channel into smaller resource units. This allows your router to communicate with multiple devices simultaneously within a single channel.
Think of it as the difference between a single-lane highway where cars must travel one at a time (Wi-Fi 5) versus a multi-lane highway where several vehicles can move forward at once (Wi-Fi 6). For your home network, this means your smart doorbell, thermostat, and laptop can all receive data in the same transmission window rather than waiting in line.
Target Wake Time (TWT)
Wi-Fi 6 introduces TWT, which allows your router to schedule communication with devices. Instead of constantly maintaining connections, your devices can “sleep” until their predetermined communication time, then wake up to send or receive data.
This coordination dramatically reduces network congestion and power consumption, particularly benefiting battery-powered IoT devices like security cameras and smart sensors. Your devices can now potentially last months longer on a single charge while maintaining reliable connectivity.
BSS Coloring
In dense environments like apartment buildings, overlapping Wi-Fi signals create interference. Wi-Fi 6 introduces Basic Service Set (BSS) Coloring, which differentiates between neighboring networks even on the same channel.
Your Wi-Fi 6 router can identify which signals belong to your network versus your neighbor’s, allowing it to make intelligent decisions about when to transmit rather than waiting unnecessarily. The result is much better performance in crowded wireless environments where Wi-Fi 5 often struggles.
Higher Data Throughput in Real-World Conditions
While theoretical maximum speeds are impressive, what matters is real-world performance. Testing shows Wi-Fi 6 delivers up to 40% higher throughput than Wi-Fi 5 in typical home environments—not just because of higher potential speeds, but because it handles interference and obstacles more effectively.
Reduced Latency
For applications like online gaming, video conferencing, and VR, responsiveness matters as much as bandwidth. Wi-Fi 6 reduces latency by up to 75% compared to Wi-Fi 5, providing much smoother experiences for time-sensitive applications.
Device Density and Congestion Management
One of Wi-Fi 6’s primary design goals was handling the explosion of connected devices in modern homes and offices through the following methods:
Superior Multi-Device Handling
The average household now has over 25 connected devices—a number unimaginable when Wi-Fi 5 was developed. Wi-Fi 6 was built from the ground up to handle this new reality.
Through the combination of OFDMA, improved MU-MIMO, and more efficient scheduling, Wi-Fi 6 can effectively manage four times as many devices simultaneously as Wi-Fi 5. Your smart home devices, streaming TVs, phones, and computers can all receive adequate bandwidth without the network congestion that plagues many Wi-Fi 5 networks.
Performance in High-Density Environments
In environments like offices, stadiums, or apartment buildings, Wi-Fi 5 performance degrades significantly as user count increases. Wi-Fi 6 maintains much more consistent performance even with dozens or hundreds of active users.
Business deployments have shown Wi-Fi 6 networks supporting up to 1,200 simultaneous users while maintaining acceptable performance, compared to Wi-Fi 5 networks that became unusable beyond 300 users. For your home in a crowded apartment building, this translates to more reliable connectivity regardless of what your neighbors are doing.
Connection Quality Visualization
If we visualize connection quality over time as more devices connect, Wi-Fi 5 shows a steep decline curve, with performance dropping dramatically as each new device joins. Wi-Fi 6 displays a much flatter curve, maintaining higher overall performance levels even as device counts increase.
Real-World Testing Results
Independent testing in congested environments shows Wi-Fi 6 maintains an average of 4x higher throughput per user than Wi-Fi 5 when more than 50 devices are connected to the same network. This means your video call won’t suddenly deteriorate when someone else in your house starts streaming 4K content.
Power Efficiency Benefits
In our increasingly wireless world, battery life is a critical consideration for mobile and IoT devices. Here are some power efficiency benefits of Wi-Fi 6 over Wi-Fi 5:
Battery Life Improvements
Mobile devices connecting to Wi-Fi 6 networks can experience up to 7x better battery life for Wi-Fi-intensive tasks compared to Wi-Fi 5. This is particularly noticeable in smartphones and tablets during video streaming, where Wi-Fi 6 devices can gain 1-2 hours of additional battery life.
Energy Efficiency for IoT Devices
For IoT devices like security cameras, smart door locks, and sensors, Wi-Fi 6’s Target Wake Time feature can extend battery life from months to years in some cases. This could eliminate the frequent battery changes or charging cycles required with many Wi-Fi 5 connected devices.
Power Consumption Comparison
Wi-Fi 6 devices consume approximately 30% less power on average than their Wi-Fi 5 counterparts for the same tasks. This efficiency comes from both improved hardware design and more intelligent power management protocols.
Environmental and Cost Benefits
The improved energy efficiency translates to both environmental benefits and cost savings. For a household with 30+ connected devices, Wi-Fi 6 can reduce annual energy consumption related to wireless connectivity by up to 80 kWh—equivalent to eliminating the carbon footprint of driving 200 miles in an average car.
Security Enhancements
Wi-Fi 6 arrives with substantial security improvements to protect your digital life. This includes:
WPA3 Support
While technically separate from the Wi-Fi 6 standard, WPA3 security comes standard with all certified Wi-Fi 6 devices. This latest security protocol addresses many vulnerabilities present in WPA2, which is commonly used with Wi-Fi 5 devices. WPA3 makes password-based attacks exponentially more difficult and protects your data even on open networks.
Improved Encryption Protocols
Wi-Fi 6 with WPA3 implements 192-bit encryption, significantly stronger than the 128-bit encryption used in most Wi-Fi 5 networks. This makes it virtually impossible for attackers to decrypt your network traffic through computational means.
Protection Against Common Attacks
Specific protections against key reinstallation attacks (KRACK), dictionary attacks, and evil twin attacks are built into the Wi-Fi 6 standard. These were significant vulnerabilities in Wi-Fi 5 networks that required careful configuration to mitigate.
Enhanced Authentication
Wi-Fi 6 improves the handshake process between devices and routers, preventing many man-in-the-middle attacks that could compromise your connection. For enterprise environments, Wi-Fi 6 also enhances 802.1X authentication security, keeping your business data more secure.
Cost Considerations and Upgrade Path
Deciding when to upgrade your network equipment requires weighing costs against benefits.
Price Comparison
Entry-level Wi-Fi 6 routers now start around $70-100, comparable to mid-range Wi-Fi 5 routers. Premium Wi-Fi 6 models with advanced features range from $200-500, about 20-30% more than equivalent Wi-Fi 5 models. This price gap continues to narrow as Wi-Fi 6 adoption increases.
Read more: Top 10 Most Affordable Electric Vehicles
When to Consider Upgrading
You should consider upgrading to Wi-Fi 6 if:
- Your current router is more than 3 years old
- You have 10+ regularly connected devices
- You experience frequent buffering when streaming
- You live in a densely populated area with many nearby networks
- You use bandwidth-intensive applications like cloud gaming or video conferencing
Backward Compatibility
Your existing Wi-Fi 5 and older devices will work perfectly with a Wi-Fi 6 router, though they won’t benefit from all the new features. As you gradually replace phones, laptops, and smart home devices, each new Wi-Fi 6 compatible device will improve your overall network performance.
Future-Proofing Considerations
With Wi-Fi 6E already available (adding 6GHz band support) and Wi-Fi 7 on the horizon, consider Wi-Fi 6 the minimum standard for any new router purchase today. A good Wi-Fi 6 router should provide excellent performance for at least 4-5 years, making it a sound investment despite newer standards emerging.

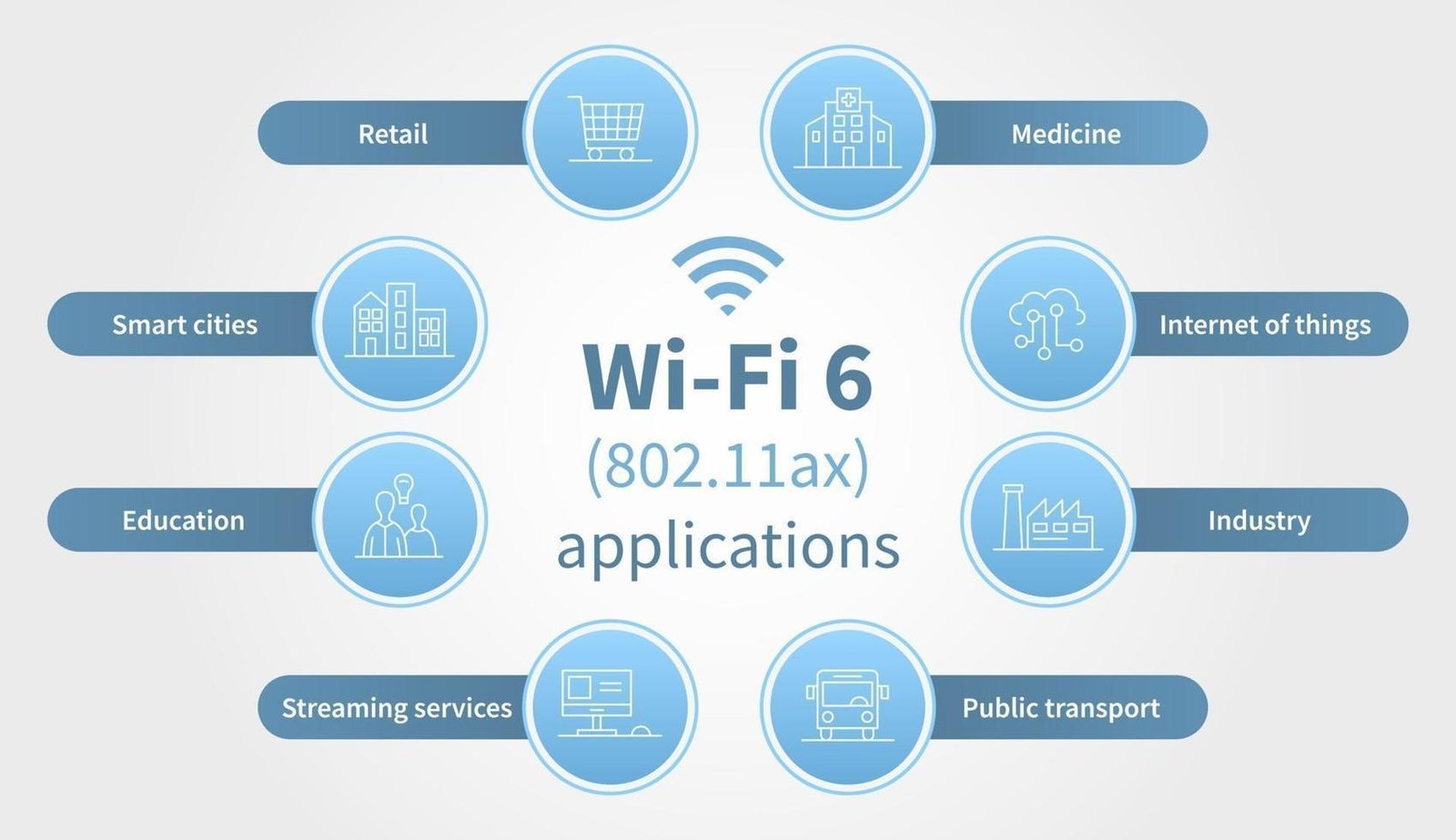

Real-World Application Benefits
How do these technical improvements translate to your daily internet usage? Here’s how:
4K/8K Streaming Performance
Wi-Fi 6 eliminates the buffering and quality drops common with multiple 4K streams on Wi-Fi 5 networks. Tests show a Wi-Fi 6 network can reliably handle up to four simultaneous 4K streams plus regular browsing, while similar Wi-Fi 5 setups struggle with more than two concurrent streams.
Smart Home Integration
The average smart home now contains 20+ connected devices—from thermostats to door locks to voice assistants. Wi-Fi 6’s ability to handle multiple devices simultaneously results in more responsive smart home controls and fewer “device unavailable” errors that plague complex Wi-Fi 5 smart home setups.
Business Applications
For small businesses, Wi-Fi 6 enables reliable point-of-sale systems, inventory management, and customer Wi-Fi without requiring separate networks. Larger enterprises benefit from significantly higher client densities, with Wi-Fi 6 access points typically supporting 3-4x more concurrent users than Wi-Fi 5 equivalents.
Public Wi-Fi Performance
As public venues upgrade to Wi-Fi 6, your compatible devices will enjoy dramatically better performance in airports, stadiums, and conference centers. Where Wi-Fi 5 public networks often become unusable during peak times, Wi-Fi 6 maintains reasonable throughput even in extremely crowded environments.
Conclusion
Wi-Fi 6 represents a substantial leap forward from Wi-Fi 5, addressing the pain points of modern wireless networking. While higher theoretical speeds grab headlines, the real-world benefits come from improved efficiency, lower latency, better device handling, and enhanced security.
For most users, upgrading to Wi-Fi 6 makes sense when:
- Your current router is showing its age with reliability issues
- You’ve accumulated numerous wireless devices in your home
- You regularly experience connectivity issues during high-demand periods
If you’re a light internet user with few connected devices, your Wi-Fi 5 router may serve you adequately for a while longer. However, as you replace smartphones, laptops, and add more smart home devices, the benefits of Wi-Fi 6 will become increasingly apparent.
The value proposition of Wi-Fi 6 extends beyond raw speed—it’s about creating a more reliable, efficient, and secure foundation for your increasingly connected life.
FAQ Section
This section contains straightforward answers to some of the most frequently asked questions about Wi-Fi 6 Vs. Wi-Fi 5:
Do I need to replace all my devices to benefit from Wi-Fi 6?
No. Wi-Fi 6 routers are backward compatible with all previous Wi-Fi standards. While only Wi-Fi 6 compatible devices will access all benefits, your entire network will typically see improved performance from a Wi-Fi 6 router’s better processing capabilities and coverage.
Will Wi-Fi 6 improve my internet speed?
Wi-Fi 6 won’t increase your internet service speed, but it will help you fully utilize your existing connection, especially when multiple devices are active. If your internet package exceeds 500 Mbps, Wi-Fi 6 will likely allow you to access more of that bandwidth than Wi-Fi 5.
What is Wi-Fi 6E and how does it differ from Wi-Fi 6?
Wi-Fi 6E extends Wi-Fi 6 technology to the newly available 6GHz band, providing additional interference-free channels. This offers even better performance in congested environments but requires compatible devices. Standard Wi-Fi 6 operates on 2.4GHz and 5GHz bands only.
Is Wi-Fi 6 worth the investment if I have few connected devices?
With fewer than 5-10 regularly connected devices, you’ll see less dramatic benefits from Wi-Fi 6. However, given the comparable pricing to higher-end Wi-Fi 5 routers and the future-proofing aspects, Wi-Fi 6 still represents the better investment for most purchases today.
How can I identify if a device supports Wi-Fi 6?
Look for “802.11ax” or “Wi-Fi 6” in the device specifications. Most flagship smartphones, laptops, and tablets released since 2020 support Wi-Fi 6. Some devices may require driver updates to fully enable Wi-Fi 6 capabilities.
